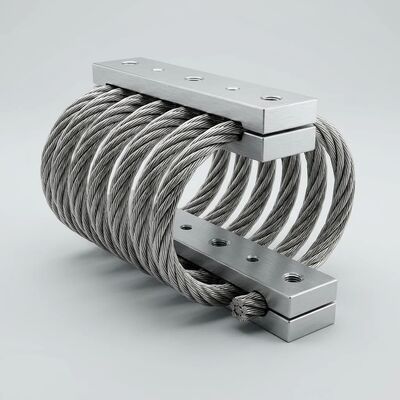

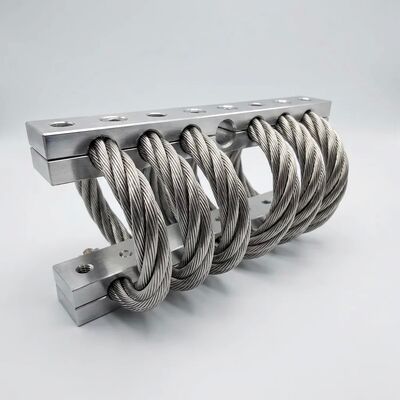

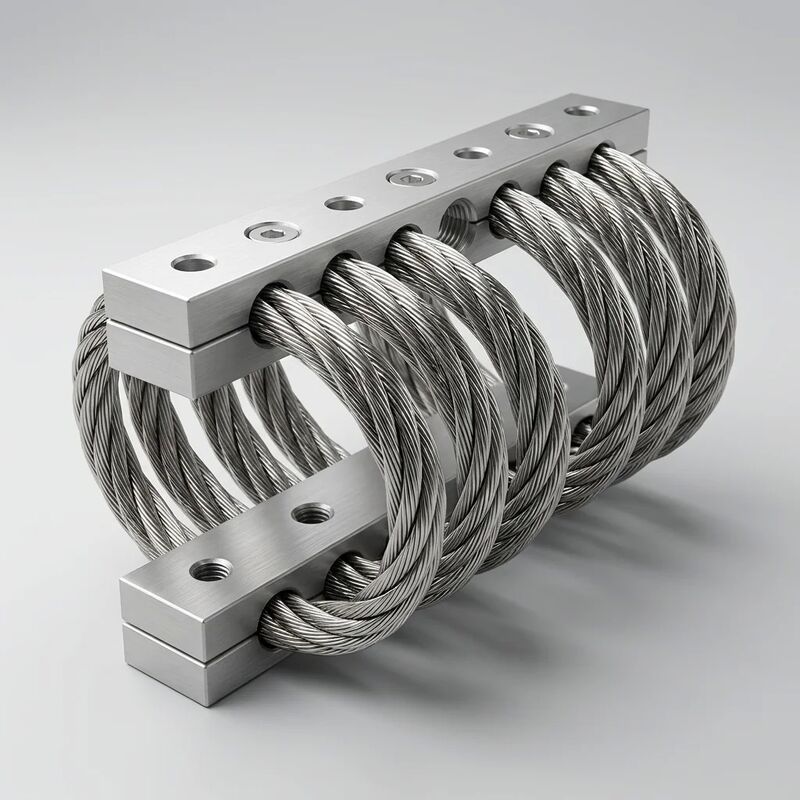

JGX-0956D-110A Tailored Payload Wire Rope Vibration Isolator with Fail-Safe Interlocking Design

JGX-0956D-110A — Payload-Tailored Wire Rope Vibration Isolator with Fail-Safe Interlocking

The JGX-0956D-110A takes a fundamentally different approach to vibration isolation. Instead of asking your equipment to fit a catalog isolator, the isolator is engineered to fit your equipment. Every unit ships with a payload-specific coil configuration — wire diameter, coil count, helix angle, and preload all calculated from your submitted weight, center-of-gravity coordinates, and excitation spectrum. A mechanical fail-safe interlock is integrated directly into the mount structure, ensuring that even under catastrophic overload, the payload remains physically captured.

How Payload-Specific Tuning Works

The JGX-0956D-110A configuration process involves three data inputs from the customer:

• Payload mass and CG location — total equipment weight plus the x, y, z coordinates of the center of gravity relative to the mounting plane; this determines the static load per isolator and the required stiffness distribution across a multi-point suspension
• Excitation frequency band — the dominant vibration frequencies the equipment generates or receives; the isolator natural frequency is then placed at least √2 below the lowest excitation frequency to achieve transmissibility below unity
• Mounting bolt pattern and envelope constraints — bolt circle diameter or rectangular grid, thread size, available clearance height, and any adjacent obstructions that limit the isolator footprint

From these inputs, the coil geometry is calculated to place the natural frequency in the 6–14 Hz band with a static deflection of 3–18 mm at the specified payload. The resulting system delivers isolation efficiency ≥ 85% at resonance across all three translational axes.

Fail-Safe Interlocking: Safety by Geometry, Not by Torque

Most vibration mounts rely on bolted connections as the sole means of payload retention. A loosened bolt, a stripped thread, or an overlooked torque check can result in equipment detachment — an unacceptable risk for overhead installations, vehicle-mounted systems, or any application where a dropped payload endangers personnel or adjacent machinery.

The JGX-0956D-110A addresses this with a positive-lock dual-bar interlocking mechanism:

• Geometric capture — two hardened stainless steel interlock bars pass through machined slots in both the base plate and the payload bracket; once assembled, the bars physically restrain the payload even if all mounting bolts are completely removed
• Overload travel limitation — the interlock bars also function as hard stops, limiting maximum compressive and tensile deflection to the designed safe range, preventing coil plastic deformation during shock events exceeding the rated load
• Visual safety confirmation — a reference groove machined into each interlock bar provides a go/no-go visual indicator; if the groove is visible beyond the bracket face, the isolator has experienced an over-travel event and should be inspected
• Zero added maintenance — the interlocking mechanism has no moving parts beyond the isolator coil itself; no pins, latches, springs, or wear surfaces that require periodic lubrication or replacement

Predictable Performance and Linearity for Confident System Design

Validation data across production JGX-0956D-110A units confirms a load-deflection linearity deviation of ≤ ±5% across the full rated load range of 1–800 kg. This near-linear behavior is a direct consequence of the helical wire rope geometry: unlike elastomers that exhibit Mullins effect, Payne effect, and strong amplitude dependence, the stainless steel coil maintains consistent stiffness regardless of excitation history.

For system designers, predictable linearity means:

• Simplified FEA modeling — the isolator can be represented as a linear spring-damper element without nonlinear material subroutines or iterative convergence checks
• Confident multi-axis prediction — the 3-axis stiffness matrix derived from a single-axis test is valid for all loading directions, enabling accurate 6-DOF system simulation
• Batch-to-batch repeatability — replacement isolators ordered years later with the same payload specification will match the original set within tolerance, eliminating the need to re-tune or re-shim the installation

Technical Specifications

Where Payload Tailoring and Safety Interlock Matter Most

• Overhead hoist and crane cabins — fail-safe interlock is non-negotiable when a dropped payload would strike personnel below; payload-specific tuning ensures the cabin ride quality meets operator comfort standards across the full hoist speed range
• Engine and transmission test stands — each engine variant has different mass and CG; custom-tuned isolators prevent resonance crossing during sweep tests while the interlock provides a hard safety barrier against mount failure at high RPM
• Precision coordinate measuring machines (CMM) — predictable linear stiffness allows the vibration isolation transfer function to be included in measurement uncertainty budgets; payload tuning places natural frequency well below floor-borne disturbances
• Mobile generator and compressor trailers — interlocking design ensures road transport safety; custom tuning accounts for the specific skid weight and CG of each trailer configuration
• Semiconductor lithography and wafer inspection tools — sub-micron positioning accuracy requires isolation mounts with documented, repeatable stiffness characteristics; JGX-0956D-110A delivers the linearity and batch consistency required for cleanroom qualification

To initiate a payload-specific JGX-0956D-110A configuration, provide your equipment weight, CG location, dominant excitation frequencies, and bolt pattern drawing. Our application engineers will return a tailored specification sheet and 3D STEP model within 48 hours.
