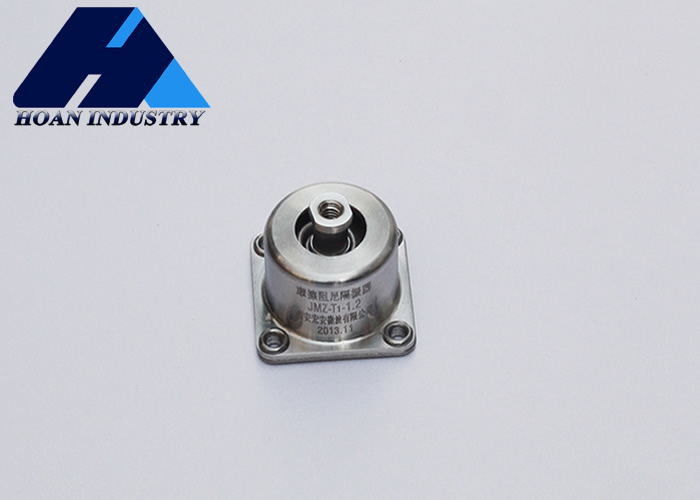

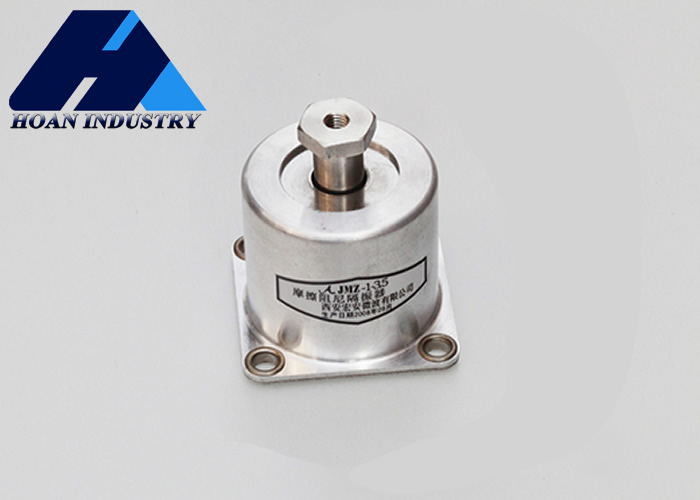

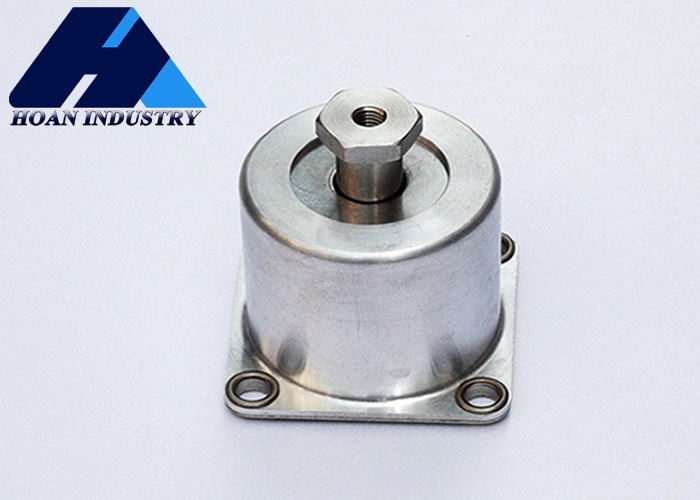

Name: JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.6
Availability: InStock

Thuis > producten > Vluchtsluiting >

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

High Resilience Spring Isolator

Strong Shock Resistance Vibration Isolator

Durable Friction Damping Isolator

Plaats van herkomst:

CHINA

Merknaam:

Hoan

Modelnummer:

JMZ-T1-0.6

Neem contact met ons op

Vraag een offerte

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Productgegevens

Bevochtigingscoëfficiënt:

Varieert op basis van het gebruikte materiaal en het type veer dat wordt gebruikt

Weerstand:

Hoog

Type:

Isolator

Schokweerstand:

Sterk

Afmetingen:

Varieert op basis van de gebruikte grootte en het type veer dat wordt gebruikt

Garantie:

1 jaar

Montage -oriëntatie:

Verticaal

Functies:

Duurzaam en gemakkelijk te installeren

Aanpassing:

Beschikbaar op aanvraag

Toepassingen:

Industriële motorbevestigingen

Corrosieweerstand:

Hoog

Kleur:

Zilver

Aanpassing:

Verstelbaar

Schokabsorptie:

Uitstekend

Markeren:

High Resilience Spring Isolator

Strong Shock Resistance Vibration Isolator

Durable Friction Damping Isolator

Betaling en verzendvoorwaarden

Min. bestelaantal

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Verwante producten

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Vind de beste prijs

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Vind de beste prijs

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Vind de beste prijs

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Vind de beste prijs

Neem contact met ons op

86-29-88292913

Contact opnemen

Productbeschrijving

JMZ-T1-0.6 Spring Isolator: The Ultimate Friction Damping Solution for Vibration Control

JMZ-T1 Series

In laboratories for electron microscopes, lithography machines, or biochips, the slightest vibration is unacceptable noise. The JMZ-T Series is specifically designed for these cutting-edge fields with "zero tolerance for vibration". Its secret lies in an extremely low natural frequency paired with precisely calculated friction damping, which effectively isolates wide-band vibrations ranging from ground vibrations to environmental disturbances.

The T Series uses high-stability internal materials, avoiding issues like creep and temperature sensitivity that may occur with traditional viscous fluids. This ensures long-term dimensional stability and consistent performance. Choosing the JMZ-T Series means providing your ultra-precision equipment with a truly "silent" foundation—making observations clearer, processing more precise, and data more reliable.

Structural Dimension Diagram

Technical Parameters

Model	Maximum PZ-Direction Load	PZ Displacement Under Maximum Load	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (℃)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Vibration Performance

Impact Performance
