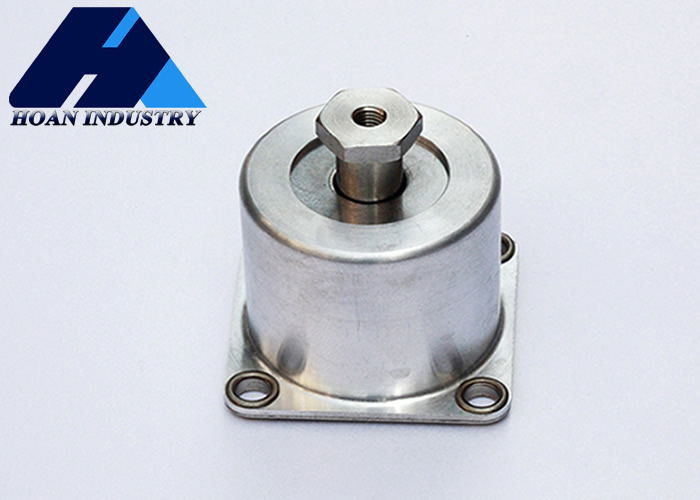

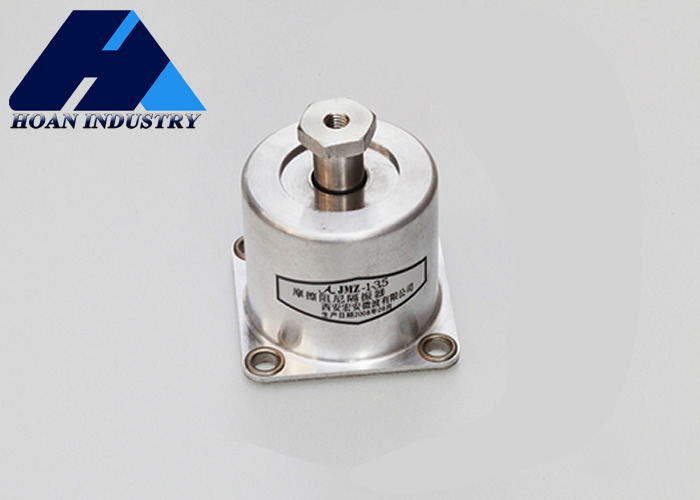

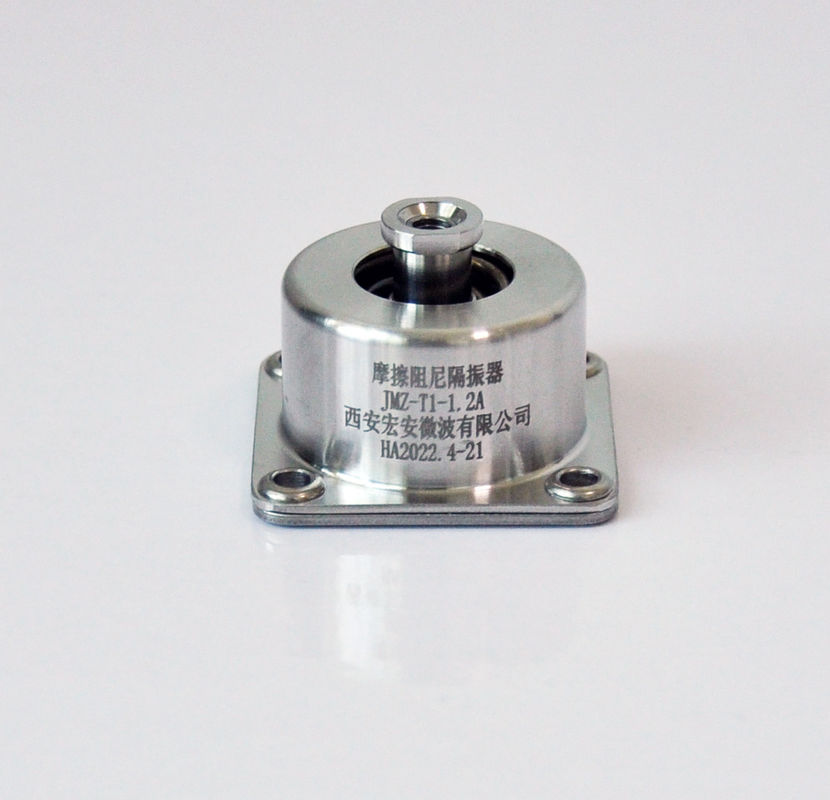

Name: JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.3
Availability: InStock

Thuis > producten > Vluchtsluiting >

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Plaats van herkomst:

CHINA

Merknaam:

Hoan

Modelnummer:

JMZ-T1-0.3

Neem contact met ons op

Vraag een offerte

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

Productgegevens

Verenigbaarheid:

Compatibel met diverse soorten machines en apparatuur

Duurzaamheid:

Langdurig

Aanpassing:

Verstelbaar

Geluidsreductie:

Effectief

Functies:

Hoog laadcapaciteit, uitstekende trillingsisolatie, duurzaam

Afmetingen:

Verschillende maten beschikbaar

Kleur:

Zilver

Machinetestrapport:

Niet beschikbaar

Isolatie -efficiëntie:

Tot 95%

Model:

JMZ-T

Gebruik:

Trillingsisolatie

Onderhoud:

Laag

Schokweerstand:

Sterk

Markeren:

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Betaling en verzendvoorwaarden

Min. bestelaantal

Betalingscondities

L/C, D/A, D/P, Western Union, MoneyGram, T/T

Verwante producten

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Vind de beste prijs

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Vind de beste prijs

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Vind de beste prijs

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Vind de beste prijs

Neem contact met ons op

86-29-88292913

Contact opnemen

Productbeschrijving

Precision Manufacturing Laboratory Measurement and High-End Communications Vibration Isolation with JMZ-T1-0.3

JMZ-T1 Series: Advanced Vibration Isolation Technology

In precision manufacturing, laboratory measurement, and high-end communications, environmental vibrations can significantly impact equipment performance. The JMZ-T1 Series vibration isolator from Xi'an Hoan Microwave provides an innovative solution to this challenge.

Unlike traditional vibration isolation methods, our friction damping technology acts like a "Tai Chi grandmaster," converting destructive mechanical energy into negligible thermal energy. This process creates an "absolute static zone" for sensitive equipment, ensuring:

Elimination of vibration interference from footsteps, vehicles, and HVAC systems
Protection for nanoscale precision equipment like lithography machines
Clear imaging for electron microscopes and other sensitive instruments
Effective filtering across low to mid-high frequency vibration spectra

Structural Dimensions

Technical Specifications

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Performance Characteristics

Vibration Isolation Performance

Impact Resistance Performance
