Name: JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T-2.6
Availability: InStock

Thuis > producten > Vluchtsluiting >

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Plaats van herkomst:

CHINA

Merknaam:

Hoan

Modelnummer:

JMZ-T-2.6

Neem contact met ons op

Vraag een offerte

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Productgegevens

Beschikbaarheid:

Op grote schaal beschikbaar

Product_naam:

Vluchtsluiting

Totale breedte:

60 mm

Installatiemethode:

Gemonteerd of ingebed

Montagetype:

Hoogste plaat

Structuur:

Spiraalvormig

Onderhoud:

Onderhoudsarme

Schokweerstand:

Sterk

Type:

Vibratie-isolator

Na garantieservice:

Online ondersteuning

Machinetestrapport:

Niet beschikbaar

Garantie:

1 jaar

Ontwerpstijl:

Industrieel

certificeringen:

UL-lijst, RoHS-conform

Toepassingen:

Industriële motorbevestigingen

Markeren:

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Betaling en verzendvoorwaarden

Min. bestelaantal

Betalingscondities

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Verwante producten

86-29-88292913

Contact opnemen

Productbeschrijving

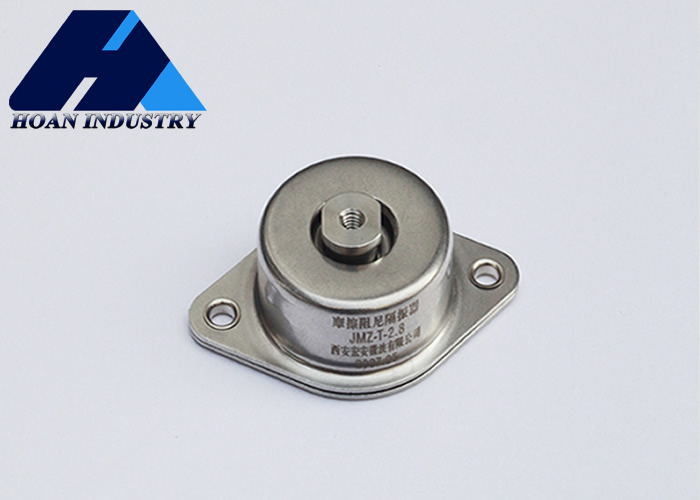

JMZ-T-2.6 Friction Damping Vibration Isolators

Superior Performance with Composite Friction Materials and Stable Damping Force

JMZ-T Series Overview

Independently developed by Xi'an Hoan Microwave Co., Ltd., the JMZ-T Series Friction Damping Vibration Isolators integrate innovative technologies for exceptional vibration control performance.

Key Technical Advantages

Advanced Friction Damping Mechanism: Provides stable damping force unaffected by temperature changes with zero maintenance requirements
Composite Friction Materials: Specially processed materials ensure high friction coefficient with smooth force variation for optimal response to both micro-vibrations and large shocks
Hybrid Structural Design: Combines metal spring load capacity with friction component energy dissipation for independent stiffness and damping adjustment
3D Vibration Isolation: Effective vibration control in all directions for comprehensive protection
Rigorous Quality Control: Comprehensive testing ensures compliance with highest industry standards

Technical Specifications

Model	Pz-Direction Load (kg)	Displacement Under Maximum Load (mm)	d	Weight (g)	Vibration test	Shock test	Resonance frequency (Hz)	Operating temperature range (℃)
JMZ-T-1.4	1.4	≤0.6	ST4*0.7/ M7-7H	≤58	＜4	30g,11ms	＜30	-65～+120
JMZ-T-2.6	2.6	See JMZ-T-1.4 for other specifications
JMZ-T-2.8	2.8	See JMZ-T-1.4 for other specifications
