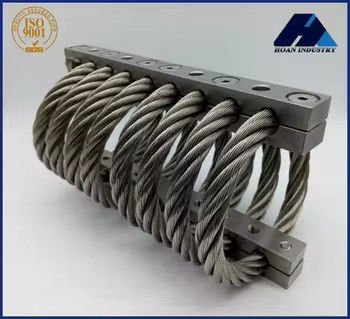

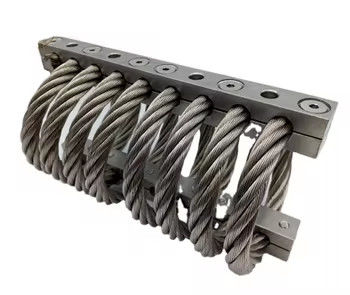

Name: JGX-0956A-32A Wire Rope Vibration Isolator with Remarkable Hysteresis Characteristics and Vibration Energy Dissipation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0956A-32A
Availability: InStock

Thuis > producten > De Trillingsisolator van de draadkabel >

JGX-0956A-32A Wire Rope Vibration Isolator with Remarkable Hysteresis Characteristics and Vibration Energy Dissipation

Place of Origin:

China

Merknaam:

Hoan

Certificering:

ISO9001:2015

Model Number:

JGX-0956A-32A

Neem contact met ons op

Vraag een offerte

JGX-0956A-32A Wire Rope Vibration Isolator with Remarkable Hysteresis Characteristics and Vibration Energy Dissipation

Productgegevens

Showroom Location:

None

Model:

JGX SERIERS

Isolation Frequency Range:

5Hz to 100Hz

Maximum Deflection:

1 inch

Product Certification:

ISO 9001

Flexible And Durable:

Yes

Application:

Vibration and Shock Isolation for Industrial Machinery

Construction:

Braided Wire Rope

Condition:

New

High:

71/74/76/83/89/105/108mm

Mounting Holes:

Mounting Thread Size:

Inner Diameter:

12mm

Isolation Frequency:

5-50 Hz

Betaling en verzendvoorwaarden

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

Verwante producten

JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements

Vind de beste prijs

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures

Vind de beste prijs

JGX-0956A-75A Trillingsisolator met draadtouw voor lucht- en ruimtevaart- en militaire apparatuur met niet-lineaire stijfheid

Vind de beste prijs

JGX-0956A-80A Draadtouw trillingsisolator met aanpasbare materiaalstructuur en interface

Vind de beste prijs

Neem contact met ons op

86-29-88292913

Contact opnemen

Productbeschrijving

JGX-0956A Series

The JGX-0956 series wire rope isolators stand out in the competitive market due to their exceptional performance. Their core elastic components utilize a multi-strand directional winding process, and the unique structural design provides remarkable hysteresis characteristics—efficiently dissipating vibration energy through precise friction, compression, and slippage between the steel wires.

In terms of performance parameters, this isolator series achieves industry-leading low natural frequencies, enabling deep isolation of low-frequency vibrations. At the same time, its multi-layer damping structure precisely suppresses high-frequency vibration transmission. When facing extreme environmental challenges, the product maintains stable vibration isolation performance within a wide temperature range of -40°C to 200°C, while resisting chemical corrosion from acids, alkalis, oils, and other contaminants—making it ideal for high-temperature, highly corrosive industrial equipment in chemical plants.

Static-Load Curve

JGX-0956A-32A Wire Rope Vibration Isolator with Remarkable Hysteresis Characteristics and Vibration Energy Dissipation 0

No.	Model	Max Static Load (KG)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0956A-110A	110	34.0	275	135
2	JGX-0956A-104A	104	37.1	240	114
3	JGX-0956A-80A	80	40.1	180	84
4	JGX-0956A-75A	75	44.7	154	68
5	JGX-0956A-72A	72	49.8	137	60
6	JGX-0956A-40A	40	66.0	65	25
7	JGX-0956A-32A	32	68.1	51	19

JGX-0956A-32A Wire Rope Vibration Isolator with Remarkable Hysteresis Characteristics and Vibration Energy Dissipation 1

No.	Model	Max Static Load (KG)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0956A-110A	90.8	47.8	177	77
2	JGX-0956A-104A	84.0	51.8	156	67
3	JGX-0956A-80A	68.1	55.9	120	49
4	JGX-0956A-75A	63.6	63.0	103	40
5	JGX-0956A-72A	61.3	71.1	92	35
6	JGX-0956A-40A	34.8	91.9	44	16
7	JGX-0956A-32A	28.6	95.0	36	12

JGX-0956A-32A Wire Rope Vibration Isolator with Remarkable Hysteresis Characteristics and Vibration Energy Dissipation 2

No.	Model	Max Static Load (KG)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0956A-110A	70.3	36.1	98	98
2	JGX-0956A-104A	65.8	39.1	84	84
3	JGX-0956A-80A	49.9	42.2	58	58
4	JGX-0956A-75A	47.7	47.2	49	49
5	JGX-0956A-72A	45.4	52.8	44	44
6	JGX-0956A-40A	20.4	68.1	20	20
7	JGX-0956A-32A	15.9	71.1	15	15

Application Scenarios

1.In the marine industry,they are used for vibration isolation of engines and pump sets.

2.For precision instruments like lithography machines and testing equipment, they provide anti-vibration protection.

3.They also apply to vibration control of industrial machinery, rail transit vehicles, and building structure seismic resistance, effectively isolating shocks and vibrations in complex environments.
