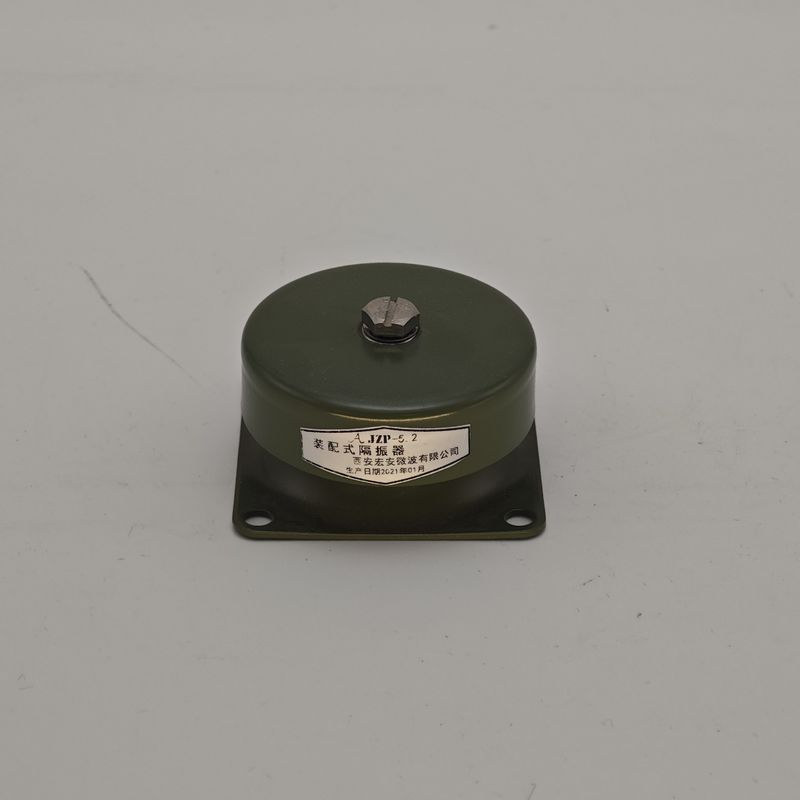

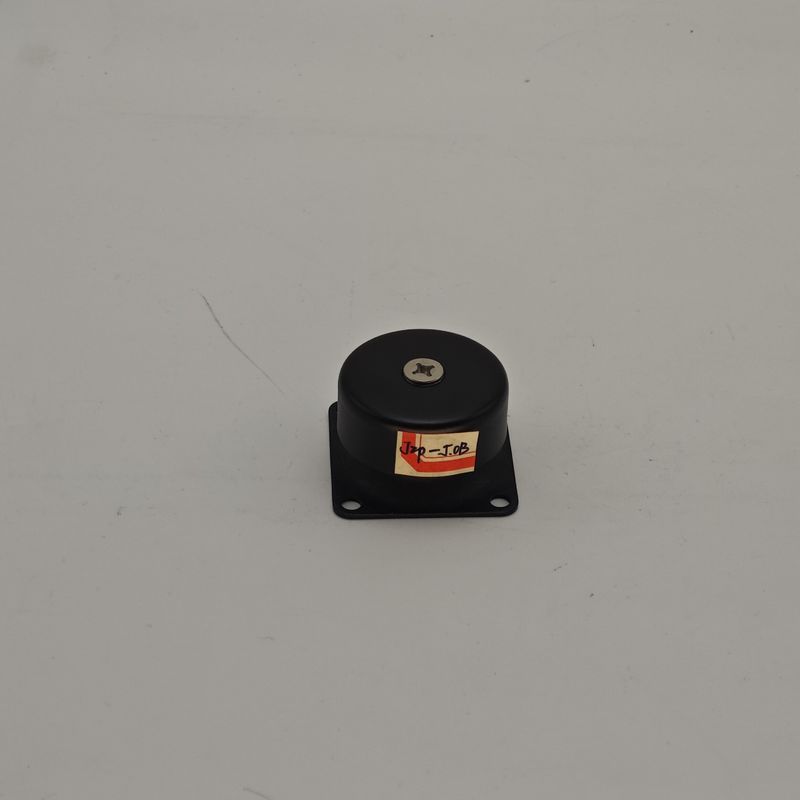

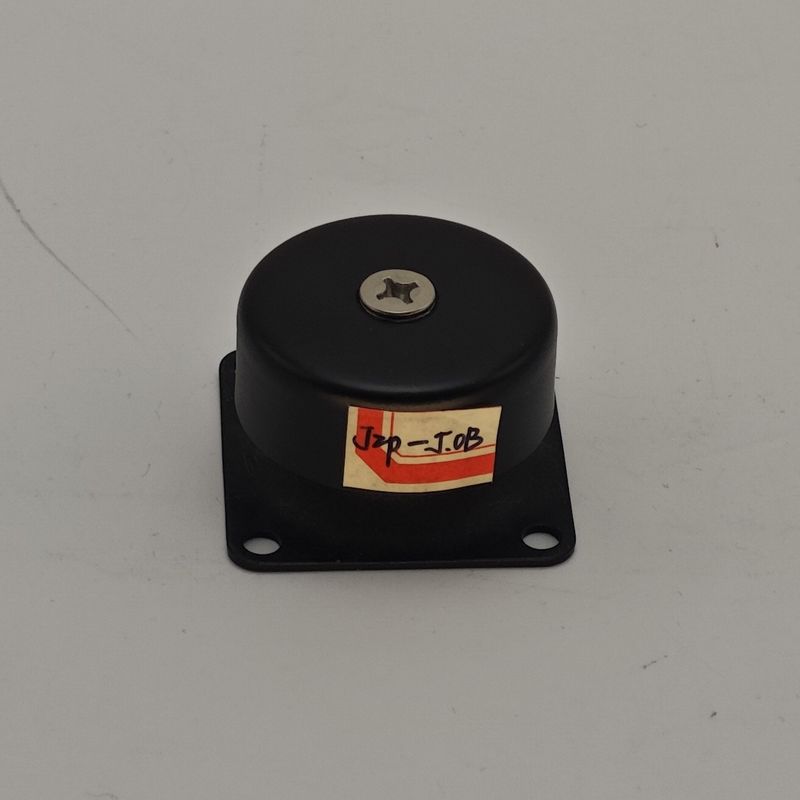

Name: JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.0B-SC
Availability: InStock

Thuis > producten > rubberschokbreker >

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

Plaats van herkomst:

China

Merknaam:

Hoan

Modelnummer:

JZP-5.0B-SC

Neem contact met ons op

Vraag een offerte

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Productgegevens

Trillingsfrequentiebereik:

10Hz tot 100Hz

Haven:

Xi'an of gespecificeerd

Na garantieservice:

online-ondersteuning

Prestatie:

Schokbestendig

Trillingsweerstand:

Hoog

Marketingtype:

Nieuw product 2025

Kenmerkend:

breed werkfrequentie, lange levensduur

OEM:

Montagetype:

Schroefdrend

Gebruik:

Het absorberen van schokken en trillingen

Werktemperatuur:

-55 ~ +120

Kleur:

Zwart

Kosten:

Betaalbaar

Markeren:

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

Betaling en verzendvoorwaarden

Min. bestelaantal

Betalingscondities

L/C, D/A, D/P, Western Union, T/T, MoneyGram

Verwante producten

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Vind de beste prijs

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Vind de beste prijs

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Vind de beste prijs

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Vind de beste prijs

Neem contact met ons op

86-29-88292913

Contact opnemen

Productbeschrijving

JZP-5.0B-SC Vibration Isolators - Tested Rubber Shock Absorbers for On-Vehicle Efficiency Validation

JZP-B-SC Series

From Lab to Road: Rigorous Testing and Quality Validation of the JZP Series Vibration Isolators

The reliability of a vibration isolator's performance cannot be based solely on theoretical calculations—it must withstand rigorous practical testing. Xi'an Hoan Microwave Co., Ltd. maintains a comprehensive testing and validation system for the JZP Series On-Vehicle Modular Vibration Isolators, from laboratory evaluations to real-vehicle trials, ensuring every product meets the highest standards.

Precise Evaluation in Laboratory Environments

During development, JZP Series prototypes undergo professional vibration testing:

Sinusoidal sweep frequency tests determine natural frequency and transmissibility curves
Random vibration tests simulate real road conditions to verify isolation efficiency
Shock tests evaluate ultimate load-bearing capacity and buffering performance

Environmental Adaptability Tests

The JZP Series undergoes extreme condition testing to ensure performance reliability:

High-low temperature alternating tests
Damp-heat resistance tests
Salt spray corrosion tests

Real-Vehicle Road Tests

Final validation comes from actual vehicle performance testing across diverse road conditions, with acceleration sensors collecting vibration data to demonstrate the JZP Series' superior isolation capabilities.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration

Impact
