JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

5-6KG Load Range Rubber Shock Absorber

1:2 Compression Ratio Vibration Isolator

40g/11ms Shock Resistance Modular Vibration Isolator

Plaats van herkomst:

China

Merknaam:

Hoan

Modelnummer:

JZP-3.5B-SC

Neem contact met ons op
Vraag een offerte
JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance
Productgegevens
Vorm:
Cilindrisch
Laadbereik:
5,6KG
Verenigbaarheid:
Geschikt voor de meeste voertuigen en apparatuur
Na garantieservice:
online-ondersteuning
Installatiemethode:
Opschroefbaar of opschroefbaar
Gewicht:
0,2 kg
Prestatie:
Schokbestendig
Compressieverhouding:
1: 2
Relatief product:
Achterste demper
Schokweerstand:
40 g/11 ms
Temperatuurbestendigheid:
Kan extreme temperaturen weerstaan
Garantie:
1 jaar
Showroom Locatie:
Geen
Max statische belasting:
20-47N (2kg-4.8kg)
UV-bestendigheid:
Sterk
Markeren:

5-6KG Load Range Rubber Shock Absorber

,

1:2 Compression Ratio Vibration Isolator

,

40g/11ms Shock Resistance Modular Vibration Isolator

Betaling en verzendvoorwaarden
Min. bestelaantal
4
Betalingscondities
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Verwante producten
Goede prijs. JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length online

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Vind de beste prijs
Goede prijs. JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025 online

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Vind de beste prijs
Goede prijs. JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation online

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Vind de beste prijs
Goede prijs. JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance online

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Vind de beste prijs
Neem contact met ons op
86-29-88292913
Contact opnemen
Productbeschrijving

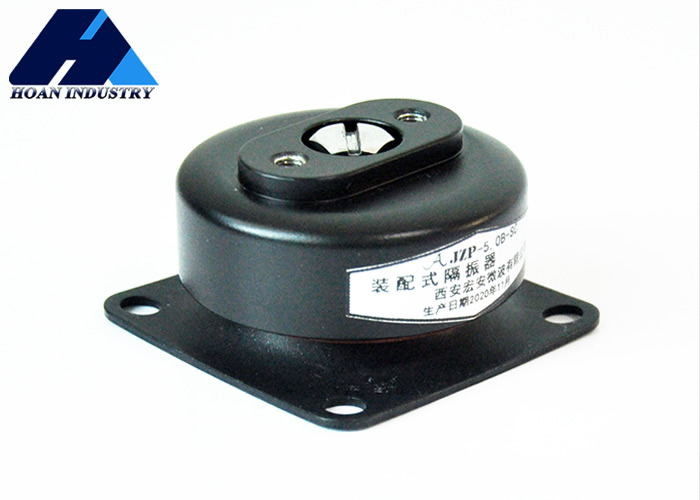

JZP-3.5B-SC Modular Rubber Shock Absorber
Lightweight Yet High-Strength Vibration Isolator for Limited Load Capacity and Space
The JZP-B-SC Series from Xi'an Hoan Microwave Co., Ltd. represents advanced vibration isolation technology designed specifically for on-vehicle applications where weight and space are critical factors.
Key Features and Design Advantages
  • Advanced high-performance elastomer materials with excellent elasticity, damping, creep resistance, and fatigue resistance
  • Computer-Aided Engineering (CAE) optimized topology for maximum strength-to-weight ratio
  • Modular design ensures easy installation and clear force transmission paths
  • Effective energy absorption and dissipation through material properties
  • Lightweight construction without compromising structural integrity
Dimension Parameters
JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance 0
Model D (mm) H±1 (mm) h (mm) A±0.2 (mm) B (mm) d d2 R B (mm)
JZP-B-SC 46 30 21 40 50 M4 ∅5.5 5 22
Technical Parameters
Model Nominal Load (kg) Static Displacement (mm) Working Temperature (℃) Resonance Frequency (Hz) Impact Test Valid Period (year)
JZP-1.0B-SC 1.0 ≤0.3 -45～+65 41.5±5 100G12times 8
JZP-1.5B-SC 1.5
JZP-2.0B-SC 2.0
JZP-2.5B-SC 2.5
JZP-3.0B-SC 3.0
JZP-3.5B-SC 3.5
JZP-4.0B-SC 4.0
JZP-5.0B-SC 5.0
JZP-5.5B-SC 5.5
JZP-6.0B-SC 6.0
Performance Characteristics
Vibration and impact curve of JZP-B-SC Series:
Vibration
JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance 1
Impact
JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance 2
